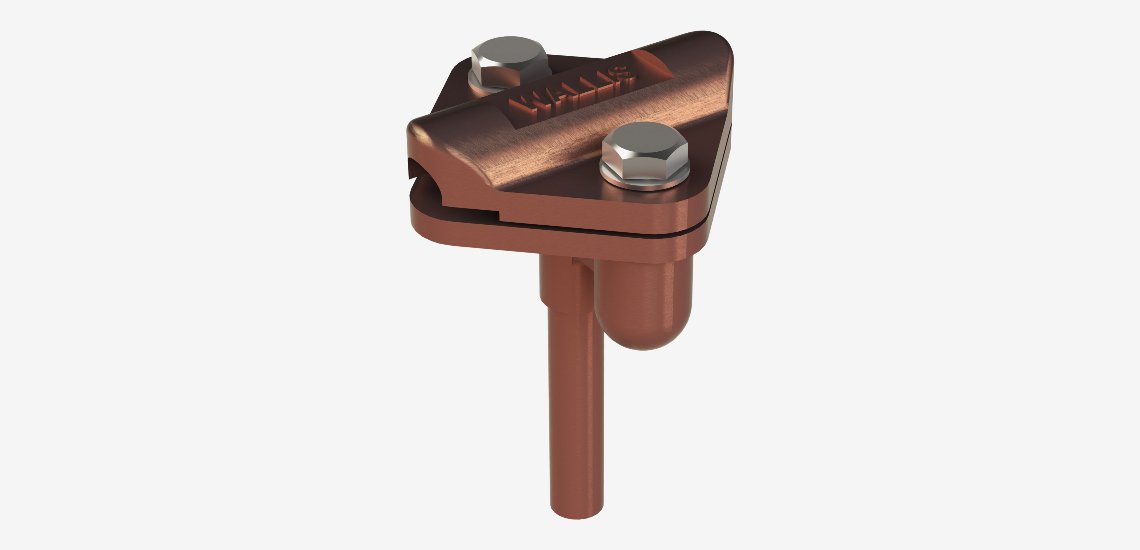

Two Hole Earth Point
Standard
IEC/BS EN 62561-1 Class H, BS 7430
Product Type
Bonding Accessories
Minimum Order Quantity
To Be Added
| Two Hole earth point | |||
|---|---|---|---|
| Part number | Description | Hole Size (mm) | Length (mm) |
| C-EP2H-100 | Conductor of 25x3mm copper tape or 70mm2 stranded bare copper cable | 12 | 90 |
| C-EP2H-110 | Conductor of 25x3mm copper tape or 8mm Ø solid bare copper cable | 12 | 90 |
| C-EP2H-120 | Without front plate | 12 | 90 |

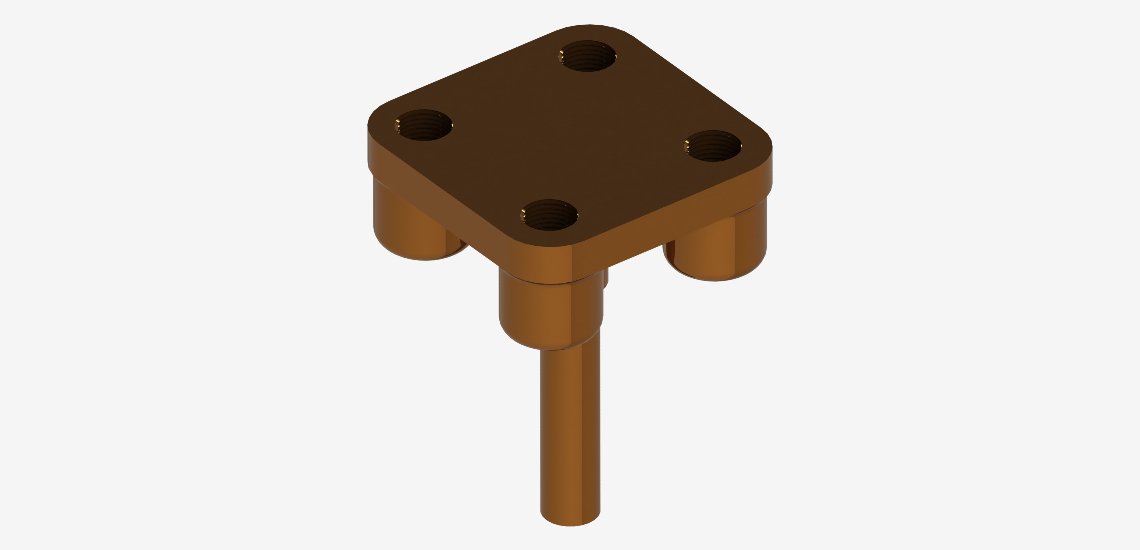

Four Hole Earth Point
Standard
IEC/BS EN 62561-1 Class H, BS 7430
Product Type
Bonding Accessories
Minimum Order Quantity
To Be Added
| Four Hole earth point | |||
|---|---|---|---|
| Part number | Description | Hole Size (mm) | Length (mm) |
| C-EP4H-100 | Conductor of 25x3mm copper tape or 70mm2 stranded bare copper cable | 14 | 80 |
| C-EP4H-110 | Conductor of 25x3mm copper tape or 8mm Ø solid bare copper cable | 14 | 80 |
| C-EP4H-120 | Without front plate | 14 | 80 |
