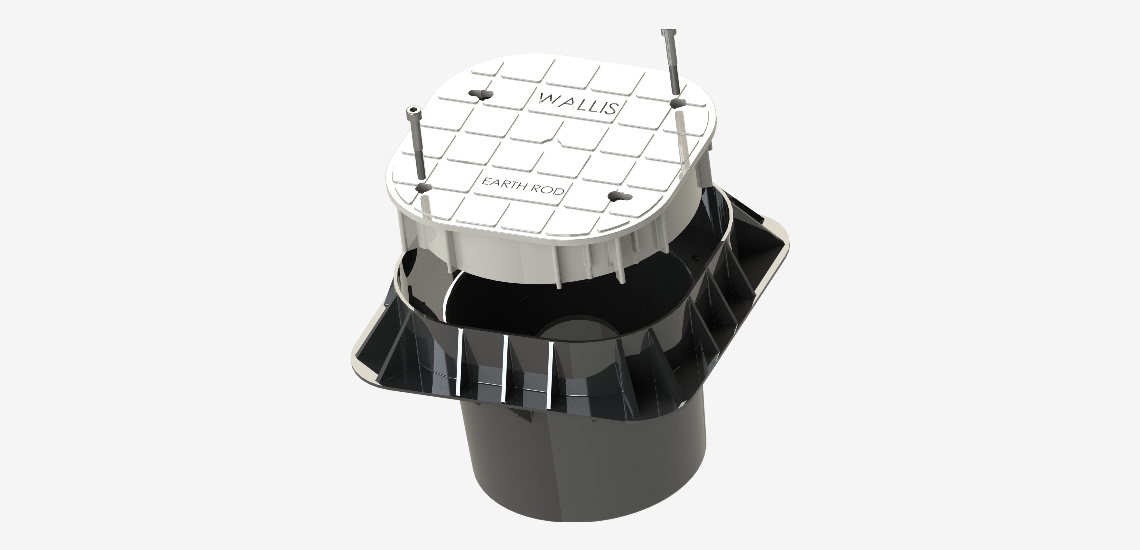

Plastic Inspection Pits
Manufactured from high-performance, UV stable and chemically resistant polymer with either polymer or concrete lid to suit the application.
The lightweight inspection pit with polymer lid is load rated to 5,000 kg and is suitable for general to heavy duty use. It has a lockable lid and improved working area compared to the concrete inspection pit. The lightweight inspection pit with concrete lid is load rated to 1,200 kg and is designed for use in pedestrianized and light vehicular areas.
Standard
IEC/BS EN 62561-5
Product Type
Earth Electrodes
Minimum Order Quantity
1,000 Pieces
| Part no. | Description | Load rating (kg) | Weight each (kg) |
|---|---|---|---|
| P-lP-3030 | Lightweight PLASTIC inspection pit with polymer lid | 5000 | 1.95 |

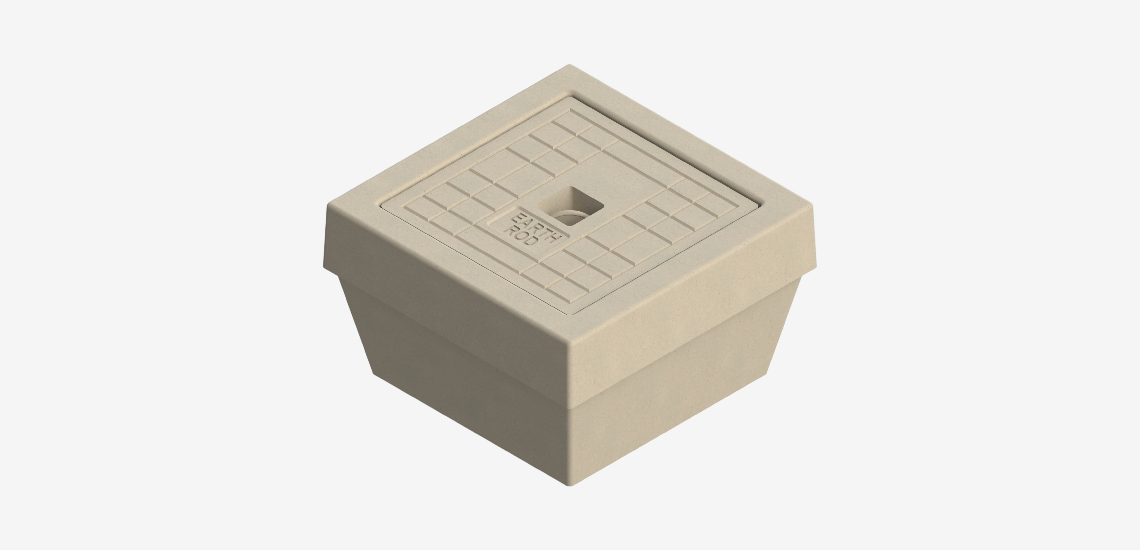

Concrete Inspection Pits
The concrete earth pit is used for load ratings upto 4000 Kgs and is suitable for most types of earthing and lightning protection installations. The Pit can have an earth bar fitted diagonally across in slots provided for multiple connections.
Standard
IEC/BS EN 62561-5
Product Type
Earth Electrodes
Minimum Order Quantity
1,000 Pieces
| Part no. | Description | Load rating | Weight each (kg) |
|---|---|---|---|
| CRT-lP-3535 | Lightweight PLASTIC inspection pit with polymer lid | 5000 | 45 |
| C-5HBB | 5hole busbar | ||
| C-7HBB | 7hole busbar |
