Rod to Cable
High grade Copper Alloy with special design to allow connection between earth rod and different types of copper cables. Can be manufactured and customized with different types of alloys upon request.
Tested to the latest required IEC standards.
Standard
IEC/BS EN 62561-1 Class H
Product Type
Earth Rods & Accessories
Minimum Order Quantity
To Be Added
| Part number | Rod Diameter (inch) | Max Conductor (mm2) |
|---|---|---|
| C-ERCU-150 | Ø 1/2 | 16-50 |
| C-ERCU-235 | Ø 5/8 | 5-35 |
| C-ERCU-270 | ø 5/8 | 16-70 |
| C-ERCU-335 | Ø 3/4 | 5-35 |
| C-ERCU-395 | Ø 3/4 | 35-95 |
| C-ERCU-4150 | Ø 1 | 70-150 |

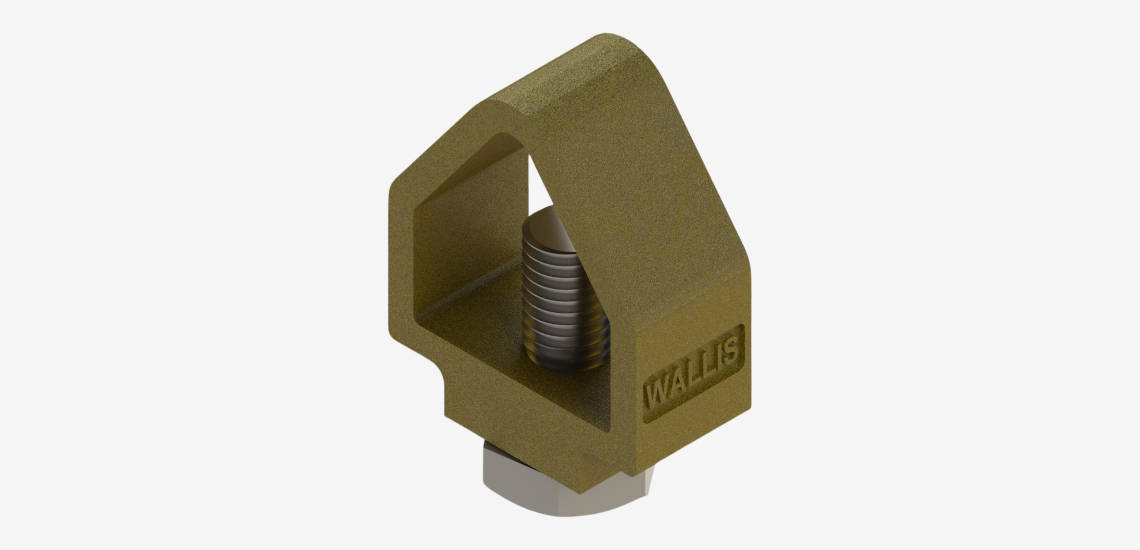

Rod to Tape
Corrosion resistant, low resistance connection between earth rod and copper tapes. Can be manufactured and customized with different types of alloys upon request. Tested to the latest required IEC standards.
Standard
IEC/BS EN 62561-1 Class H
Product Type
Earth Rods & Accessories
Minimum Order Quantity
To Be Added
| Part number | Rod Diameter (inch) | Max Conductor (mm) |
|---|---|---|
| C-ERCU-2612T1 | ø 1/2 | 26x12 |
| C-ERCU-2612T2 | ø 5/8 | 26x12 |
| C-ERCU-302T2 | ø 5/8 | 30x2 |
| C-ERCU-4012T2 | ø 5/8 | 40x12 |
| C-ERCU-518T2 | ø 5/8 | 51x8 |
| C-ERCU-2618T2 | ø 5/8 | 26x18 |
| C-ERCU-2610T3 | ø 3/4 | 26x10 |
| C-ERCU-302T3 | ø 3/4 | 30x2 |
| C-ERCU-5112T3 | ø 3/4 | 51x12 |
| C-ERCU-2610T3 | ø 3/4 | 26x10 |
| C-ERCU-2610T4 | ø 1 | 26x10 |
